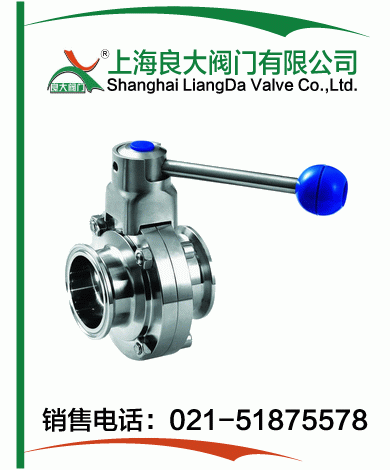

产品简介
| 产品名称： | 卫生级快装蝶阀 |
| 型号： | WD81F |
| 口径： | DN25-200 |
| 压力： | 1.6-6.4MPa |
| 材质： | 不锈钢 |
| 快装蝶阀/DIN | ||||||
 | Size | O | B | Kxk | A | H |
| DN15 | 78.0 | 34.0 | 8.0×8.0 | 68.0 | 39.0 | |
| DN20 | 78.0 | 34.0 | 8.0×8.0 | 68.0 | 39.0 | |
| DN25 | 78.0 | 50.5 | 8.0×8.0 | 68.0 | 39.0 | |
| DN32 | 86.0 | 50.5 | 8.0×8.0 | 68.0 | 43.0 | |
| DN40 | 90.0 | 50.5 | 8.0×8.0 | 70.0 | 45.0 | |
| DN50 | 102.0 | 64.0 | 10.0×10.0 | 76.0 | 51.0 | |
| DN65 | 120.0 | 91.0 | 10.0×10.0 | 80.0 | 60.0 | |
| DN80 | 139.0 | 106.0 | 11.0×11.0 | 84.0 | 69.5 | |
| DN100 | 154.0 | 119.0 | 11.0×11.0 | 104.0 | 77.5 | |
| DN125 | 165.0 | 145.0 | 11.0×11.0 | 136.0 | 92.5 | |
| DN150 | 215.0 | 167.0 | 11.0×11.0 | 148.0 | 107.5 | |
| 快装蝶阀ISO/IDF | ||||||
 | Size | O | D | Kxk | A | H |
| φ19 | 78.0 | 25.4 | 8.0×8.0 | 66.0 | 39.0 | |
| φ25 | 78.0 | 50.5 | 8.0×8.0 | 66.0 | 39.0 | |
| φ32 | 78.0 | 50.5 | 8.0×8.0 | 66.0 | 39.0 | |
| φ38 | 86.0 | 50.5 | 8.0×8.0 | 70.0 | 43.0 | |
| φ45 | 90.0 | 64.0 | 8.0×8.0 | 74.0 | 45.0 | |
| φ51 | 102.0 | 64.0 | 10.0×10.0 | 76.0 | 51.0 | |
| φ57 | 106.0 | 77.5 | 10.0×10.0 | 76.0 | 53.0 | |
| φ63 | 115.0 | 77.5 | 10.0×10.0 | 80.0 | 57.5 | |
| φ76 | 128.0 | 91.0 | 10.0×10.0 | 84.0 | 64.0 | |
| φ89 | 139.0 | 108.0 | 11.0×11.0 | 90.0 | 69.5 | |
| φ102 | 154.0 | 119.0 | 11.0×11.0 | 104.0 | 77.0 | |
| φ108 | 159.0 | 119.0 | 11.0×11.0 | 107.0 | 79.5 | |
| φ138 | 185.0 | 145.0 | 11.0×11.0 | 138.0 | 92.5 | |
| φ159 | 215.0 | 183.0 | 11.0×11.0 | 148.0 | 107.5 | |
| φ219 | 285.0 | 233.5 | 14.0×14.0 | 165.0 | 142.5 | |
| 快装蝶阀/SMS | ||||||
 | Size | O | B | Kxk | A | H |
| 25 | 78.0 | 50.5 | 8.0×8.0 | 66.0 | 39.0 | |
| 32 | 78.0 | 50.5 | 8.0×8.0 | 66.0 | 39.0 | |
| 38 | 88.0 | 50.5 | 8.0×8.0 | 70.0 | 43.0 | |
| 51 | 102.0 | 64.0 | 10.0×10.0 | 76.0 | 52.0 | |
| 63 | 115.0 | 77.5 | 10.0×10.0 | 80.0 | 57.5 | |
| 78 | 128.0 | 91.0 | 10.0×10.0 | 84.0 | 64.0 | |
| 89 | 139.0 | 108.0 | 11.0×11.0 | 90.0 | 69.5 | |
| 102 | 154.0 | 119.0 | 11.0×11.0 | 104.0 | 77.0 | |
| 快装蝶阀/3A | ||||||
 | Size | O | B | Kxk | A | H |
| 1" | 78.0 | 25.4 | 8.0×8.0 | 100.0 | 39.0 | |
| 3/4" | 78.0 | 25.4 | 8.0×8.0 | 100.0 | 39.0 | |
| 1" | 78.0 | 50.5 | 8.0×8.0 | 100.0 | 39.0 | |
| 1 1/2" | 86.0 | 50.5 | 8.0×8.0 | 100.0 | 39.0 | |
| 2" | 102.0 | 64.0 | 8.0×8.0 | 100.0 | 45.0 | |
| 2 1/2" | 115.0 | 77.5 | 10.0×10.0 | 104.0 | 51.0 | |
| 3" | 128.0 | 91.0 | 10.0×10.0 | 112.0 | 60.0 | |
| 4" | 154.0 | 119.0 | 11.0×11.0 | 120.0 | 67.0 | |
| 5" | 185.0 | 145.0 | 11.0×11.0 | 128.0 | 77.0 | |
| 6" | 215.0 | 167.0 | 11.0×11.0 | 160.0 | 92.5 | |
| 8" | 285.0 | 217.0 | 14.0×14.0 | 180.0 | 107.5 | |
